Flow monitor JSF-1E ... 3E

Description
• Mechanical
• TÜV-tested
Technical data:
• Switching capacity: 15 (8) A, 24–250 V ~, at 24 V ~ min. 150 mA
• Contact: 1 micro-switch used as floating changeover contact (changeover switch)
• Accuracy: ± 15% of set target value
• Protection type: IP 65
• Protection class: I
• Ambient temperature: –40 to + 85 °C
• Max. medium temperature: 120 °C
• Paddle: V4A
• Design certified by TÜV according to flow 100 to 6˝
• Medium: normal
• Carrier body: MS
TypePipemax operating pressure [bar]EquipmentOrder No.€/eachAvail.Functions

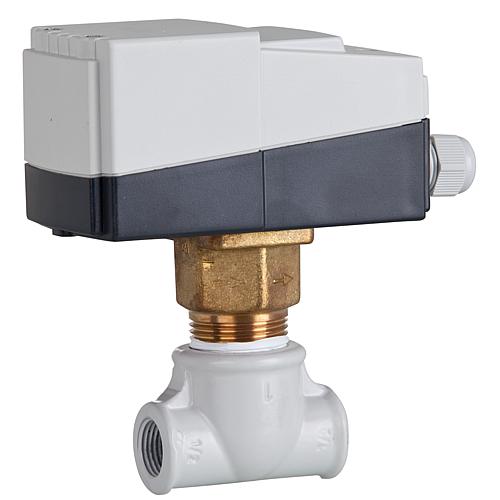

JSF 3 EDN 15 (1/2”)5T piece (GG)60 047 05not logged in
JSF 1 EDN 25 (1") ... DN 200 (8")8-60 047 07not logged in
JSF 1 REDN 25 (1") ... DN 200 (8")5red. Switching values for low flow volume60 047 08not logged in
